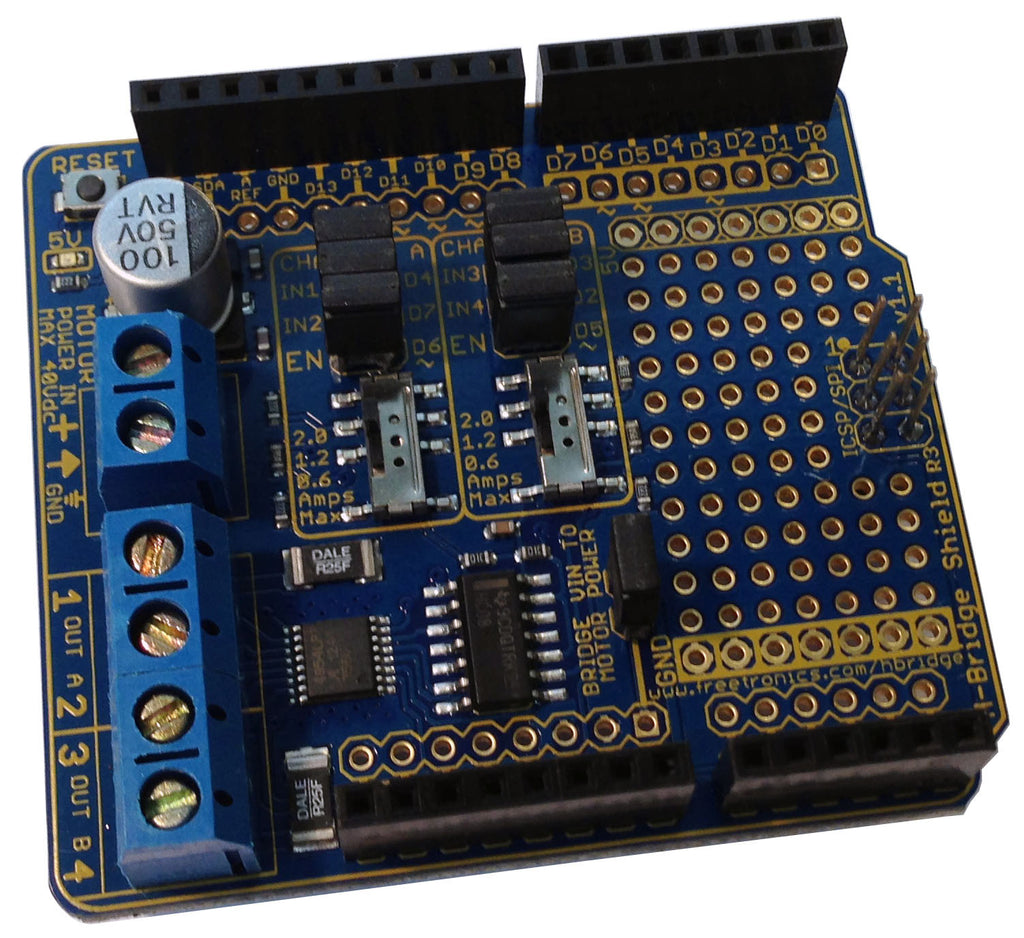

Dual Channel H-Bridge Motor Driver Shield

This product is currently sold out.
Tell me when it's back in stock

$16.00 $28.00

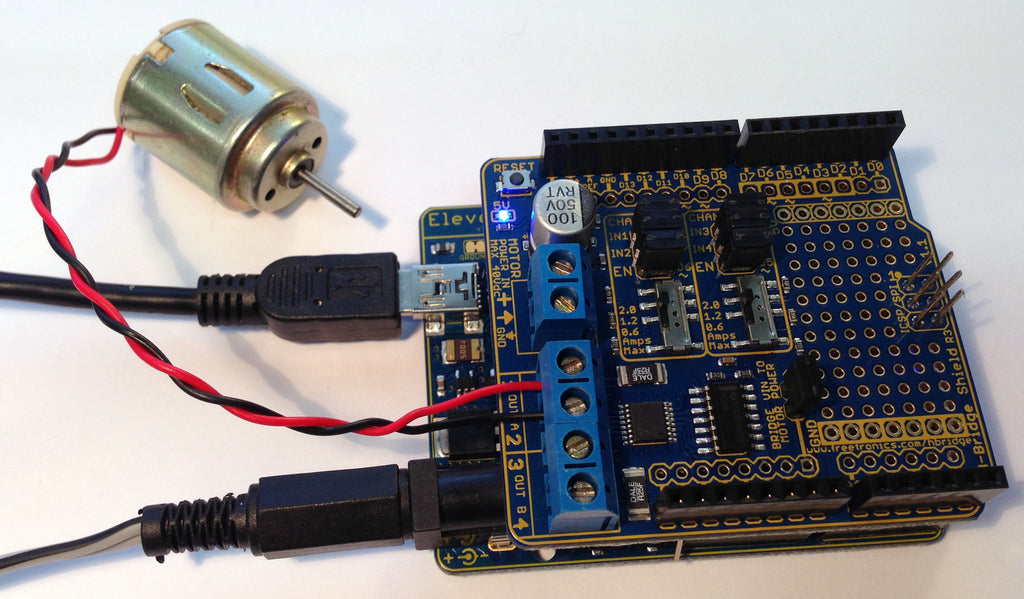

Our Dual Channel H-Bridge Motor Driver Shield is perfect for driving either a pair of DC motors or a 4-wire bipolar stepper motor.

Features

  • Allegro A4954 Dual Channel H-Bridge driver IC
  • Min 8V Max 40V 2A peak rating
  • PWM control of both H-Bridges

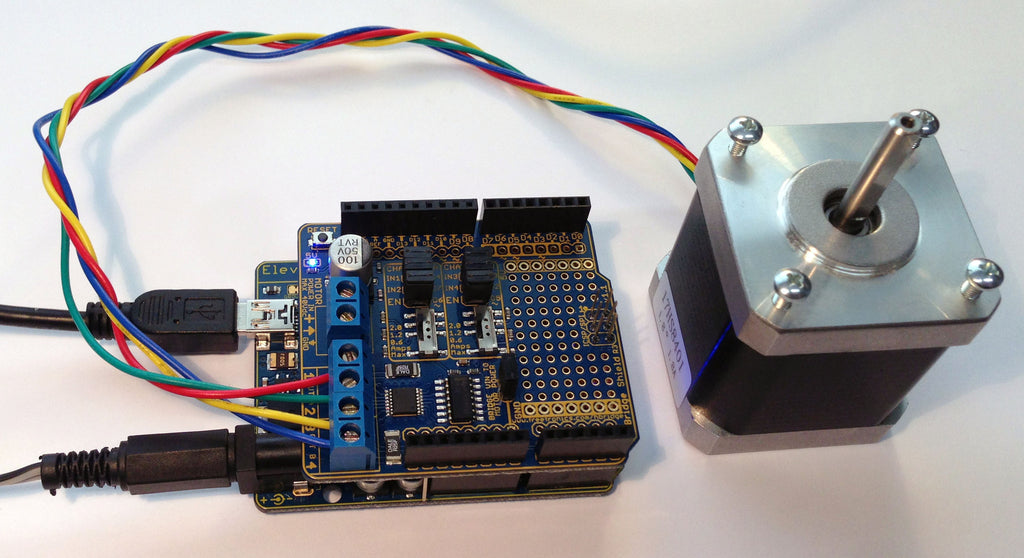

  • Can be used as 2 independent H-Bridges, or combined to drive a 4-wire stepper

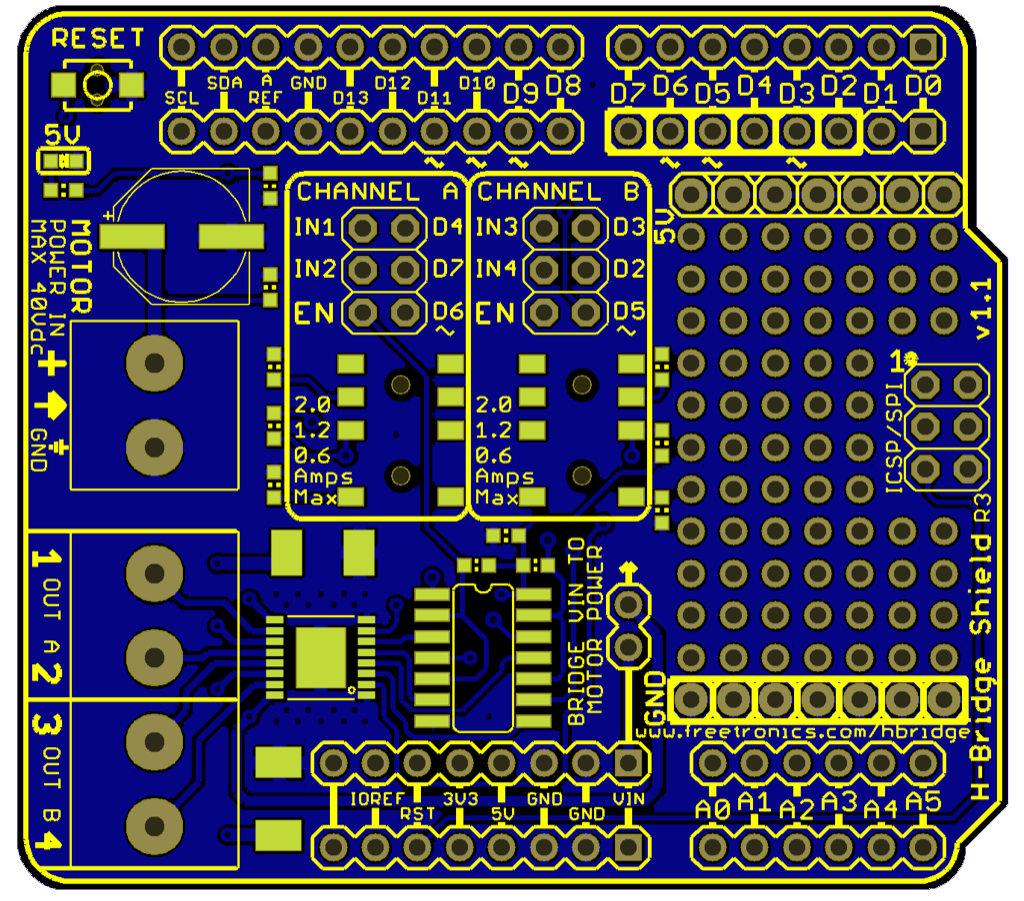

  • Selection jumpers for pin assignments
  • Selectable current limit per channel: 0.6A, 1.2A, 2A
  • Prototyping area to add your own parts
  • Jumper to power Arduino from motor power source or vice versa
  • Large screw terminals for motor power in and motor output channels
  • Stackable Arduino headers

Resources


SKU:
  • HBRIDGE (0)
